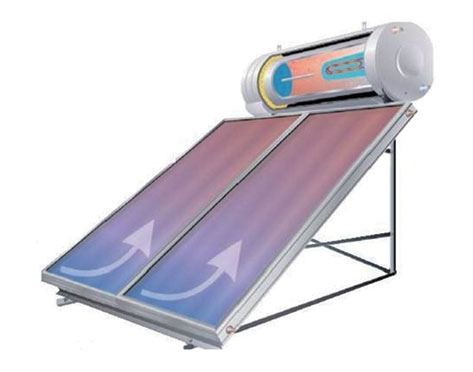

Flat plate type
Model   AFC150 AFC200 AFC300
Solar collector Quantity
Dimensions
Aperture area
Coating
Header
Wall insulation 		1
1,030*2,030mm
2.00m2
blue tec selectivity
Cu 22 mm
40 mm mineral wool 		2
1,030*2,030mm
2*2.00m2
blue tec selectivity
Cu 22 mm
40 mm mineral wool
Tank Contents
Diameter
Length
Operating pressure
Insulating
Material
Insulation thickness
Connections
Empty weight 		150L
540mm
1000mm
6bar
Rigid polyurethane
foam
50mm
3/4"
40kg		 200L
540mm
1500mm
6bar
Rigid polyurethane
foam
50mm
3/4"
55kg		 300L
540mm
2000mm
6bar
Rigid polyurethane
foam
50mm
3/4"
65kg
Frame Material
Corrosion protection
Use		 Powder coated steel
Galvanised
Elevated and parallel roof installation
Connection pipe Length
Diameter
Insulating material
Insulation thickness 		2,000 mm stainless steel pipe
Dia.22 mm
Elastomer rubber with protective PE film
20mm
