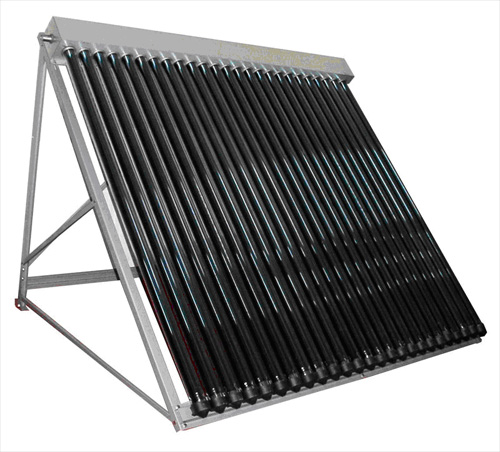

All glass horizontal solar collector(CS-NPH)

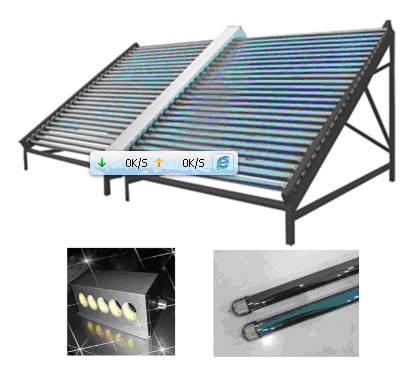

![](image/20131121.jpg)
MODEL |
Absorbing
Area |
vacuum tube |
(m2) |
diameter |
length |
tube |
CS-NPH 470-1500/47-24-CF |
1.20 |
Φ 47mm |
1500mm |
24 |
CS-NPH 470-1500/47-48-CF |
2.40 |
Φ 47mm |
1500mm |
48 |
CS-NPH 470-1800/58-24-CF |
1.92 |
Φ 58mm |
1800mm |
24 |
CS-NPH C 470-1800/58-48-CF |
3.84 |
Φ 58mm |
1800mm |
48 |
|
NOTE:Absorber area is the part of the collector that actively absorbs the light rays. For solar tubes this is defined as the cross-sectional area of the inner tube (selective coated) measured using the outside diameter. (Eg. 0.047 x 1.72m = 0.08m2) |
Features: for all glass Vacuum Tube Solar Collector
* Reliable, efficient, twin-glass vacuum tube
* Easy plug-in installation An economical solution
* An economical solution
* Could be either vertically or horizontally positioned
* Especially suit large commercial or industrial applications, such as farm, restaurant, hotel, factory, etc.
* All stainless steel frame (304 2B grade)
|
