Advantages of our double-pipe air source water heater--11 KW
1) It can not only work as a air conditioner, but also by the same time provide your with hot water
High efficiency/ good COP index performance
2) Safe and convenient to use:
3) Automatic control:
a. Temperature checking function
High/Low pressure protection and insufficient water flow protection; automatic unit on/off timer clock.
b. Automatic reversing defrosting function
c. Unit runs automatically according to set water temperature.
4) Qualified components: Branded compressor (Toshiba)
Detailed Description:

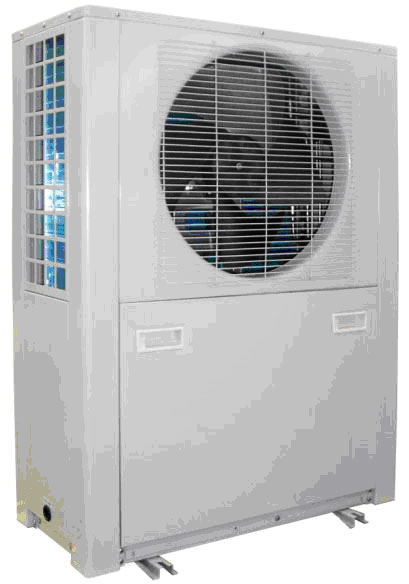

The parameters of our double-pipe air source water heater as below,
![](image/20131257.jpg)
Model: CS-RS-82
Ambient temp.
Performance |
Outdoor temp(℃) |
43℃ |
20℃ |
2℃ |
Heating capacity (W) |
16300 |
11900 |
7000 |
Average input (W) |
2600 |
2400 |
2200 |
Max. input (W) |
3400 |
3200 |
2090 |
COP (W/W) |
6.27 |
4.95 |
3.34 |
Hot water supply(L/h) |
460 |
245 |
140 |
Flow rate of tested circulation pump(t/h) |
2.85 |
2.84 |
2.84 |
Temp. difference of in/out water (℃) |
5 |
5 |
2 |
Hot water temp. (℃) |
55 |
Net weight (Kg) |
94 |
Gross weight (Kg) |
98 |
Power supply |
220V~50Hz |
Refrigerant |
R410A |
Size(mm) |
740x340x1020 |
Packing size(mm) |
850x420x1170 |

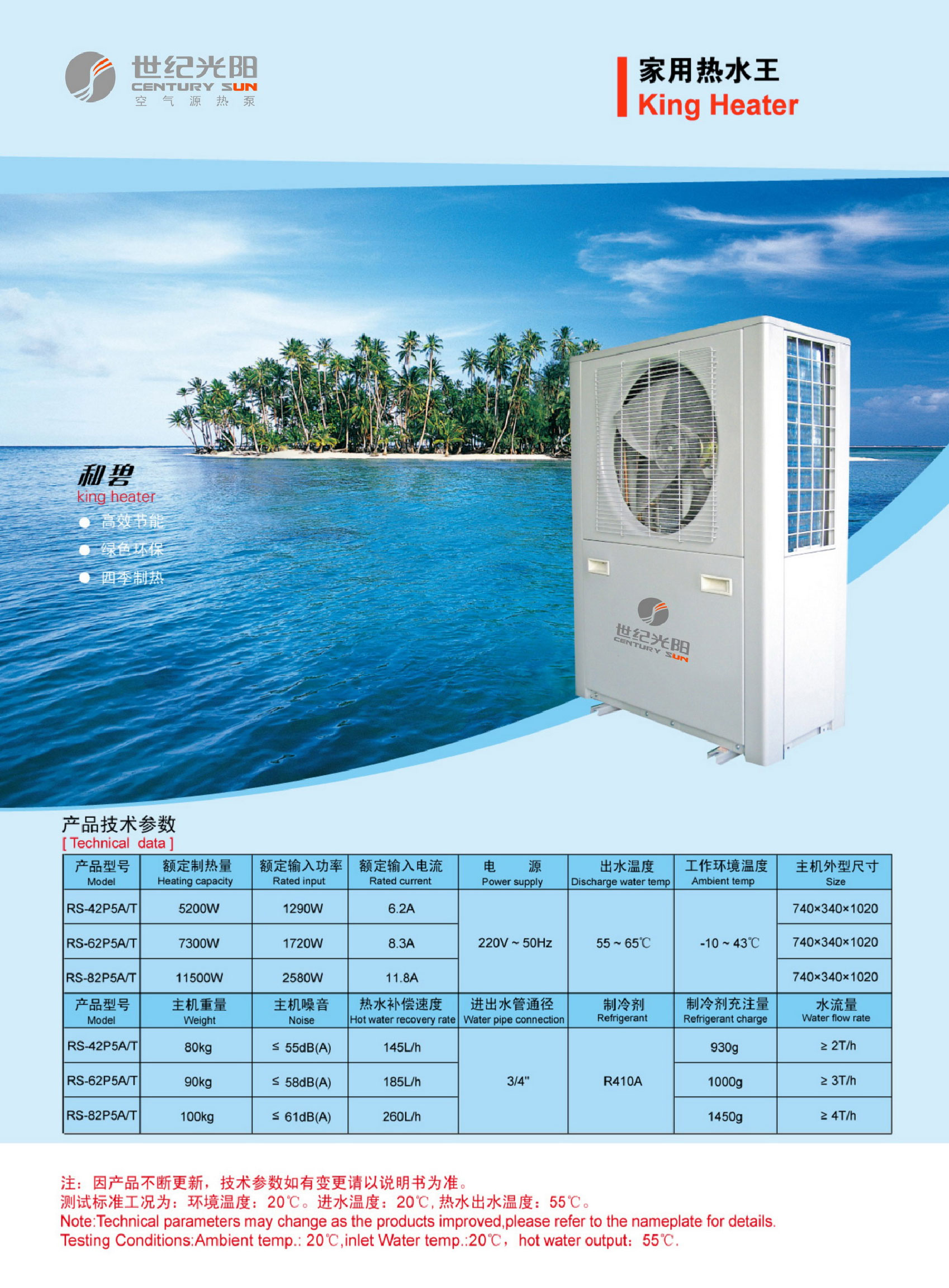

Air to Water Heat pump
(King Heater)
Specifications
Heat Pump Water Heater
1) Environmental Protected
2) Save Energy Cost
3) Automatic Control
4) CE EMC TUV
![](image/20131258.jpg)
The parameters of Air Source Heating Pump Air Water Heater
features as below:
Model |
CS-RS-140 |
Outdoor temp.
Performance |
43℃ |
20℃ |
2℃ |
Heating capacity (W) |
24000 |
18500 |
11800 |
Average input (W) |
5000 |
4750 |
4100 |
Max. input (W) |
6250 |
6240 |
6400 |
COP (W/W) |
4.8 |
3.89 |
2.87 |
Hot water supply(L/h) |
688 |
420 |
240 |
Flow rate of tested circulation pump(t/h) |
3.45 |
3.45 |
3.3 |
Temp. difference of in/out water (℃) |
4.5 |
3 |
1.1 |
Hot water temp. (℃) |
55 |
Net weight (Kg) |
200 |
Gross weight (Kg) |
230 |
Power supply |
380V~60Hz |
Refrigerant |
R410A |
Size(mm) |
880×850×1240 |
Packing size(mm) |
880×880×1250 |
Model |
CS- RS-280 |
Outdoor temp.
Performance |
43℃ |
20℃ |
2℃ |
Heating capacity (W) |
47000 |
33000 |
18600 |
Average input (W) |
9100 |
9000 |
8000 |
Max. input (W) |
11890 |
12100 |
12100 |
COP (W/W) |
5.1 |
3.67 |
2.33 |
Hot water supply(L/h) |
1200 |
800 |
370 |
Flow rate of tested circulation pump(t/h) |
10.3 |
10.2 |
10.6 |
Temp. difference of in/out water (℃) |
3 |
3 |
2 |
Hot water temp. (℃) |
55 |
Net weight (Kg) |
380 |
Gross weight (Kg) |
452 |
Power supply |
380V~60Hz |
Refrigerant |
R410A |
Size(mm) |
1530×800×1350 |
Packing size(mm) |
1530×800×1350 |
|
