CS
Technical Specification
Manifold Casing Material |
Powder coated Aluminum zinc steel |
Frame Material |
Powder coated Aluminum zinc steel |
Header Pipe Material |
C12200 Copper |
Insulation |
Polyurethane 55mm /Rock wool |
Rubber Seals and Rings |
UV stabilized high temperature silicone rubber |
Testing Pressure |
9bar |
MODEL |
Absorb area(m2) |
Heat pipe |
Supply hot water(L/ ℃ ) |
QTY.Per 20/40" container |
diameter |
length |
No. |
|
CS-1500/47-12 |
0.60 |
Φ47mm |
1500mm |
12 |
70/60 |
133/276 |
CS-1500/47-18 |
0.90 |
Φ47mm |
1500mm |
18 |
120/60 |
120/249 |
CS-1500/47-20 |
1.00 |
Φ47mm |
1500mm |
20 |
125/60 |
110/227 |
CS-1500/47-24 |
1.20 |
Φ47mm |
1500mm |
24 |
150/60 |
97/200 |
CS-1500/47-30 |
1.50 |
Φ47mm |
1500mm |
30 |
180/60 |
76/158 |
CS-1800/58-12 |
0.96 |
Φ58mm |
1800mm |
12 |
110/60 |
118/244 |
CS-1800/58-18 |
1.44 |
Φ58mm |
1800mm |
18 |
150/60 |
84/175 |
CS-1800/58-20 |
1.60 |
Φ58mm |
1800mm |
20 |
175/60 |
77/160 |
CS-1800/58-24 |
1.92 |
Φ58mm |
1800mm |
24 |
220/60 |
64/133 |
CS-1800/58-30 |
2.40 |
Φ58mm |
1800mm |
30 |
260/60 |
52/106 |
Features:
* Reliable, efficient, twin-glass solar tubes heat pipe
* Copper heat pipes for rapid heat transfer
- Low maintenance effort
- Easy installation of single or multiple units
* Corrosion resistant silver brazed copper header

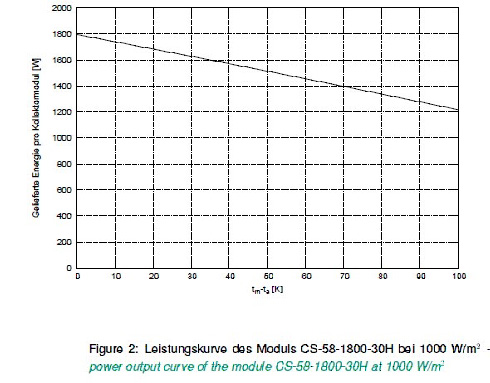

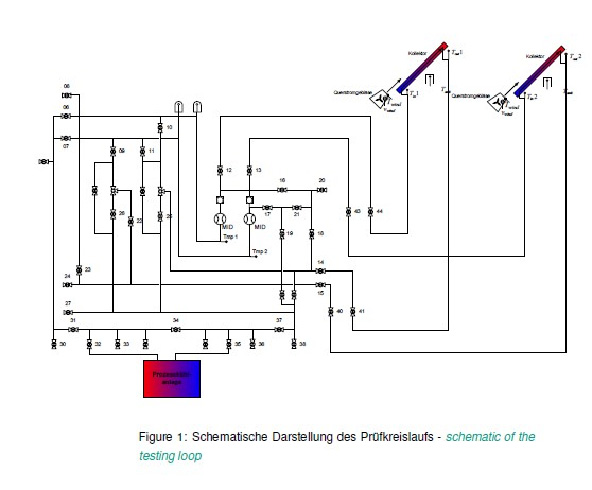

* Tested according to EN 12975-2 Min power output of 525 kwh/m2(certified by ISE) |
