How it works

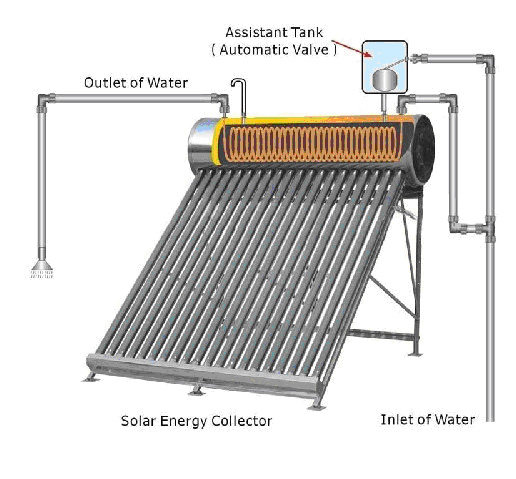

This type of solar water heater provides mains pressure pre-heating via a highly effective copper coil heat exchanger located within the solar collector tank. Rather than using the water in the tank directly, as the non pressure does, this type uses a 45 m copper coil.

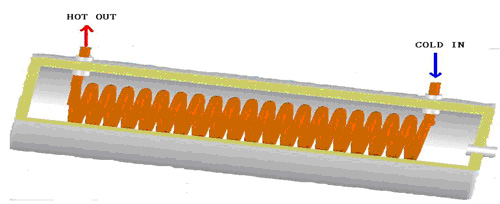

Heat exchanger inside the tank which provides more than 2.5m 2 of heat transfer area. When water flows though the coil it absorbs heat FROM the water inside the solar collector tank. The solar collector tank is therefore a thermal store and amount of water you can draw is not restricted to size of tank.

Model	Capacity(L)	Material			Insulation	Size of Vacuum Tube(mm)
		Inter Tank	Out Tank	Stand/Frame
CS-WH-III-15Q	150L	SUS-304 2b	galvanized steel	Coating steel/ Aluminum alloy	Polyurethane foaming	￠58X1800
CS-WH-III-18Q	180L	SUS-304 2b	galvanized steel	Coating steel/ Aluminum alloy	Polyurethane foaming	￠58X1800
CS-WH-III-20Q	200L	SUS-304 2b	galvanized steel	Coating steel/ Aluminum alloy	Polyurethane foaming	￠58X1800
CS-WH-III -24Q	240L	SUS-304 2b	galvanized steel	Coating steel/ Aluminum alloy	Polyurethane foaming	￠58X1800
CS-WH-III -30Q	300L	SUS-304 2b	galvanized steel	Coating steel/ Aluminum alloy	Polyurethane foaming	￠58X1800
CS-WH-III -36Q	360L	SUS-304 2b	galvanized steel	Coating steel/ Aluminum alloy	Polyurethane foaming	￠58X1800

Pressure Integrated
Solar Water Heater System
（Super-conductive pipe）

Product Description

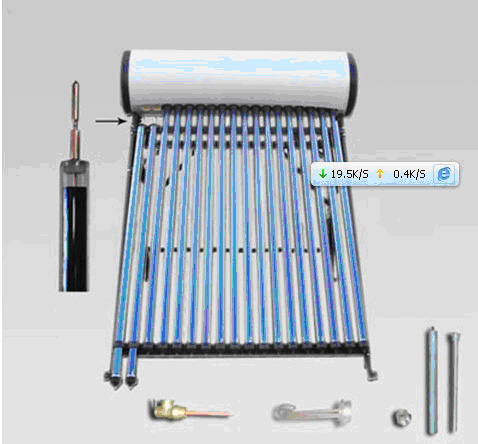

Compact Pressurized Solar Water Heater System, which made up of heat pipe vacuum tube, galvanized frame, storage tank, electric pump, controller, etc.
They are usually more expensive than passive systems but are also more efficient. Especially in cloudy days or sunless days.

Work Principle:

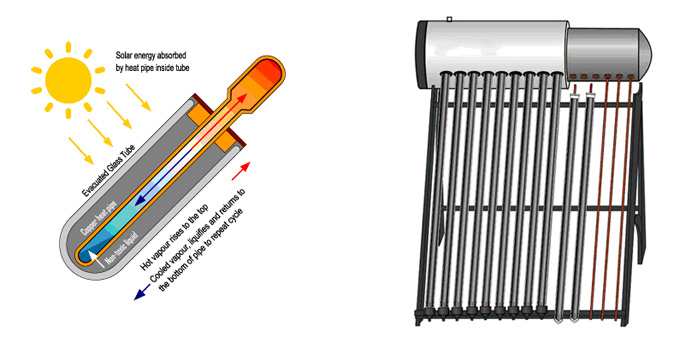

There are two vacuums in an all-glass heat pipe, the one in the inner tube and the one between the inner and the outer tube. The inner tube absorbs the solar energy, which is transferred to heat. The temperature in the inner tube rises up and the transfer fluid in the inner tube vaporizes. The vapor rises up to the condenser where it transfers the heat to the water in the tank, so the vapor loses its heat and condenses, then flows down to the bottom of the tube. Such a circulation will continue as long as the sun shines.

Advantages:
1) Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
2) No water inside the evacuated tubes, the solar water heater can still in service even with several tubes breakage.
3) Can be used all year round in the cold climate.

Specifications:
1. Tank capacity: 100L, 150L, 200L, 250L, 300L;
2. Outer tank: Color steel 0.50mm thickness;
3. Inner tank: Food grade SUS304-2B stainless steel 1.20mm thickness;
4. Evacuated tube: 47*1800, 58mm*1800mm, etc;
5. Preserved layer: 60mm foamed polyurethane;
6. Heat preservation: 72hrs;
7. Hail resistance: 25mm;
8. Bracket: Stainless steel, galvanized steel plate, aluminum alloy.

Features:
1. It can withstand pressure of tap water when it works;
2. There is no need to wait;
3. Completely automatic operation;
4. Drinking water quality to promote life quality;
5. Temperature preservation can last for 72 hours;
6. Without volatile tubes;
7. Without incrusting, long usage life.

Heat   Pipe   Vacuum Tube	Spec. (mm)	Φ 47× 1500        Φ 47× 1800    Φ 58× 1800  Φ 58× 2100
	Tube (pcs)	12 / 16 / 18 / 20 / 24 / 28 /  30 / 36
	Material	Borosilicate glass, red copper heat pipe tube, aluminum fin
	Coating	Three-target Cu/SS-ALN(H)/SS-ALN(L)/ALN coating
Water tank	Capacity	100 ~ 400L for inner tank
	Inner tank	Food-grade SUS304-2B stainless steel 1.2~1.5mm
	Insulation	High-density polyurethane integrated-foaming 60mm
	Tank shell	Stainless steel plate SUS304
Bracket	Spec. (mm)	1.2mm in thickness
	Material	Stainless steel plate (aluminum alloy bracket is available)
Accessories	Stainless bolt, Dustproof rubber seal, Plastic pip holder
Optional device	Electrical heater, Intelligent controller, Anod magnesium bar, T& P valve
Working pressure	6 bar

Model	Capacity(L)	Material			Insulation	Size of Vacuum Tube(mm)
		Inter Tank	Out Tank	Stand/Frame
CS-WH-I-15Q	150L	SUS-304 2b with copper coil inside	galvanized steel	galvanized steel	Polyurethane foaming	￠58X1800
CS-WH-I-18Q	180L	SUS-304 2b with copper coil inside	galvanized steel	galvanized steel	Polyurethane foaming	￠58X1800
CS-WH-I-20Q	200L	SUS-304 2b with copper coil inside	galvanized steel	galvanized steel	Polyurethane foaming	￠58X1800
CS-WH-I -24Q	240L	SUS-304 2b with copper coil inside	galvanized steel	galvanized steel	Polyurethane foaming	￠58X1800
CS-WH-I -30Q	300L	SUS-304 2b with copper coil inside	galvanized steel	galvanized steel	Polyurethane foaming	￠58X1800
CS-WH-I -36Q	360L	SUS-304 2b with copper coil inside	galvanized steel	galvanized steel	Polyurethane foaming	￠58X1800
