Product Description\

Characteristic:

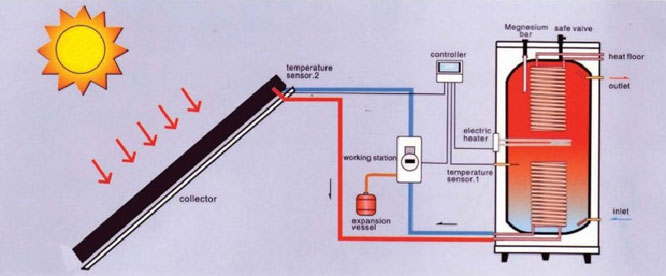

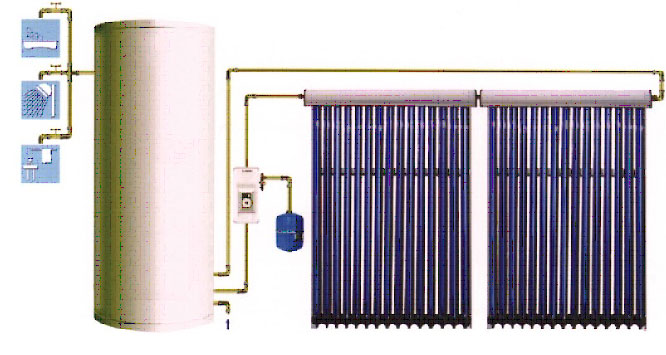

1. The split solar water heater is composed by heat collector, storage tank, controller, working station and installation parts.
2. Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof.
3. Module design, arbitrary combination, harmony with the building perfectly.
4. Intelligent control and automatic operation.
5. Anti-freeze No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature.
6. Multifunction bathing, washing, domestic heating, etc.
7. Could work at anytime and use enjoyably.

Technical Parameters
Inner tank SUS 304-2B/2mm
Outer tank Galvanized steel/0.5mm
Insulation high density polyurethane foam 50mm
Vacuum tube 58*1800mm
SS-CU-AIN/ALN coating
Collator aluminum alloy casting and copper pipe channel
Bracket Aluminum alloy 1.5mm
0-50 degree
Accessories Circulation pump, expansion vessel, pyrometer, flow meter Working pressure 0.7bar
Working temperature -35-50° C
Capacity 150L 200L 250L 300L 500L
Remark Three models of Shouting-S01:
Century Sun-S010 no coiler Century Sun-S011 single coiler Shouting-S012 two coilers in the tank.

Model	Collector Model	Collector	Absorber Area	Tank Capacity	Loading quantity
					20`GP (Sets)	40`GP (Sets)	40`HQ (Sets)
CSQB -01-200-24	24 tubes -58/1800	1 Pc	3.06M²	200L	26	53	62
CSQB -01-300-30	30 tubes -58/1800	1Pc	3.84 M²	250L	20	40	48
GYQB -01-300-36	18 tubes -58/1800	2 Pc	4.59M²	300L	18	37	43
GYQB -01-300-40	20 tubes -58/1800	2 Pc	5.14M²	300L	17	35	44
GYQB -01-300-48	24 tubes -58/1800	2 Pc	6.12M²	400L	17	35	44
GYQB -01-500-60	30 tubes -58/1800	2 Pc	7.71 M²	500L	13	26	32
