Working principle of CENTURY SUN U pipe solar collector.
The CENTURYSUN U pipe solar collector consists of 3 main
components:
1. ALL glass vacuum
tube
2. Heat transfer system(solar cycle) 3. Frame

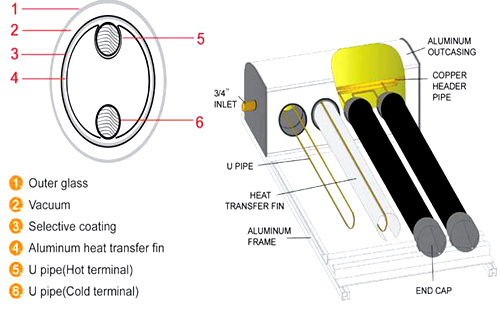

In each vacuum tube there is a U pipe with direct flow-through that is connected to the header pipe inside manifold. This U pipe is seamed in an aluminum heat transfer fin in the interior of vacuum tube that transmits the heat FROM the interior tube to the U pipe. Solar radiation permeates the outer glass tube and is captured on the outside of inner glass tube by highly selective sputter layer. The captured solar radiation is transmitted to flush-contact aluminum shield and then copper pipe filled with heat transfer fluid. The 360°aluminum heat transfer fin assures the fastest energy transfer.
TECHNICAL
SPECIFICATION
Model Name
CSU10/47
CSU16/47
CSU12/58
CSU20/58
Manifold casing material
Anodized aluminum
Anodized aluminum
Anodized aluminum
Anodized aluminum
Frame material
Anodized aluminum
Anodized aluminum
Anodized aluminum
Anodized aluminum
Header pipe material
Copper
Copper
Copper
Copper
U pipe material
Copper
Copper
Copper
Copper
U pipe diameter
8mm
8mm
8mm
8mm
No. of pipes
10
16
16
20
Diameter/length of Vacuum
tube
47mm/1500mm
47mm/1500mm
58mm/1800mm
58mm/1800mm
No. of vacuum tube
10
16
12
20
Aperture area
0.61m2
1.00m2
1.08m2
2.03m2
Gross area
1.2m2
1.93m2
2m2
3.00m2
Insulation
Rock wool
Rock wool
Rock wool
Rock wool
Rubber seals and rings
UV stabilized silicon
rubber
UV stabilized silicon
rubber
UV stabilized silicon
rubber
UV stabilized silicon
rubber
Test pressure
9 bar
9 bar
9 bar
9 bar
Collector mounting
Flat roof/inclined roof
Flat roof/inclined roof
Flat roof/inclined roof
Flat roof/inclined roof
Mounting angle
0 degree-90 degree
0 degree-90 degree
0 degree-90 degree
0 degree-90 degree
Gross weight
28KG
40KG
43KG
65KG
Different size collectors available on
request

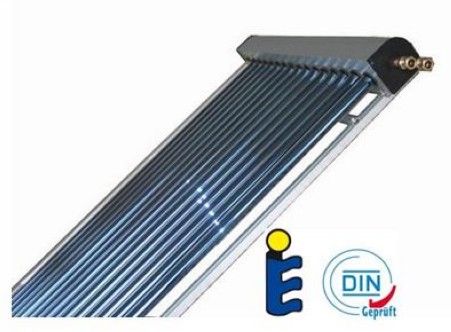

Image for reference only and may not be exactly same as real products.
PERFORMANCE

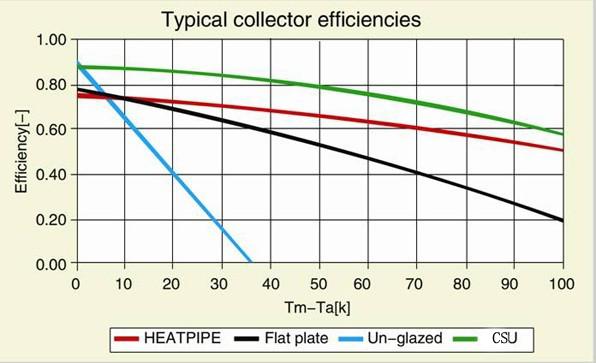

CSU collector has been tested to EN12975 and achieved a comparable high efficiency and with a very small heat loss coefficient. The COST/KWH value is smaller than most other collectors which mean you pay less for each KWH out put for our collector.
(n0=0.880 a1=0.505 a2=0.019)
Above DATA is given to absorber area
